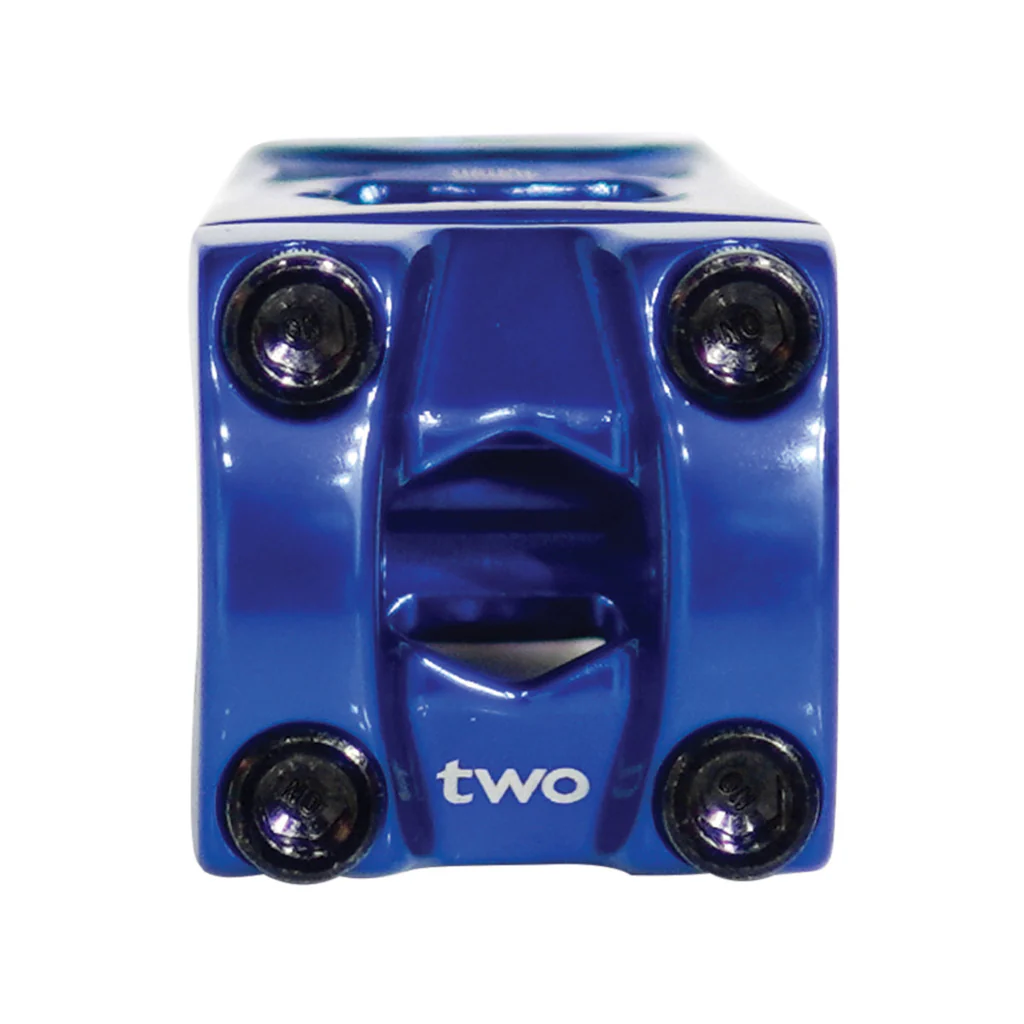

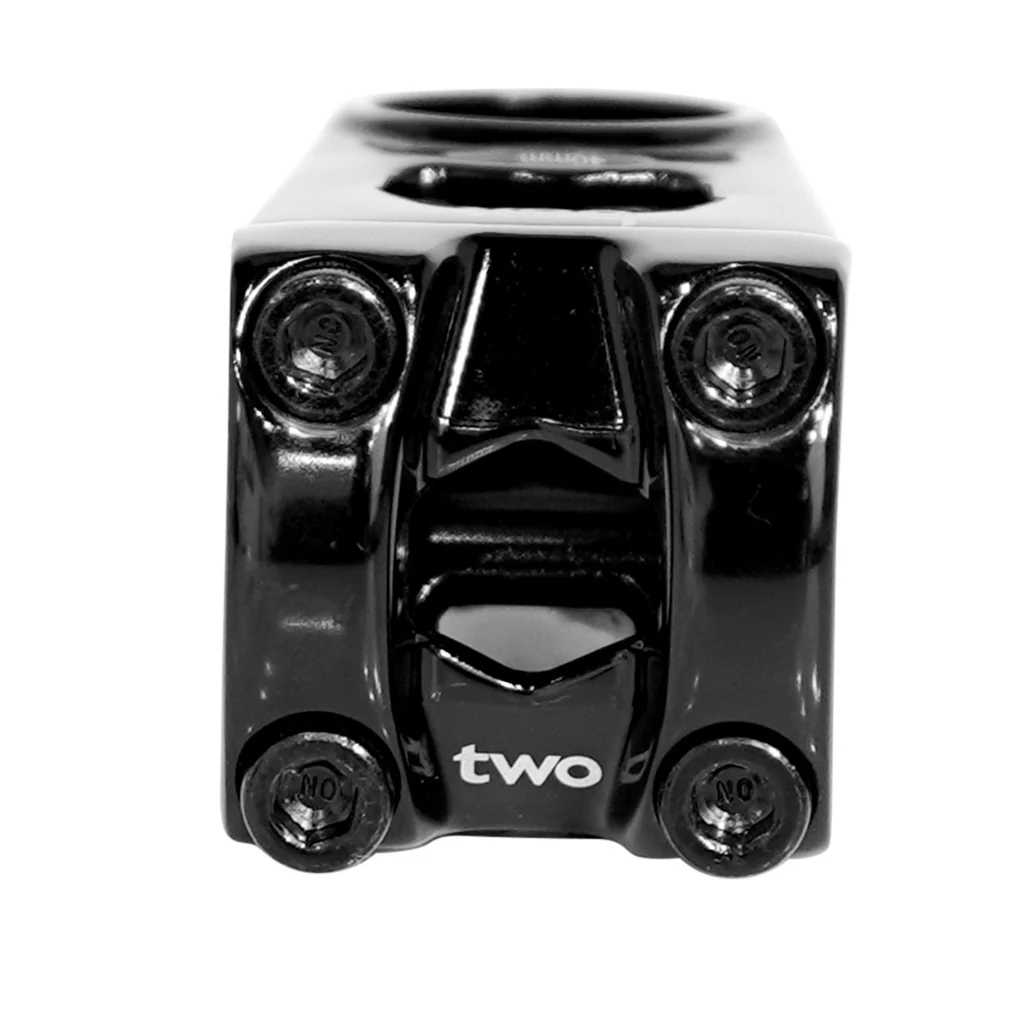

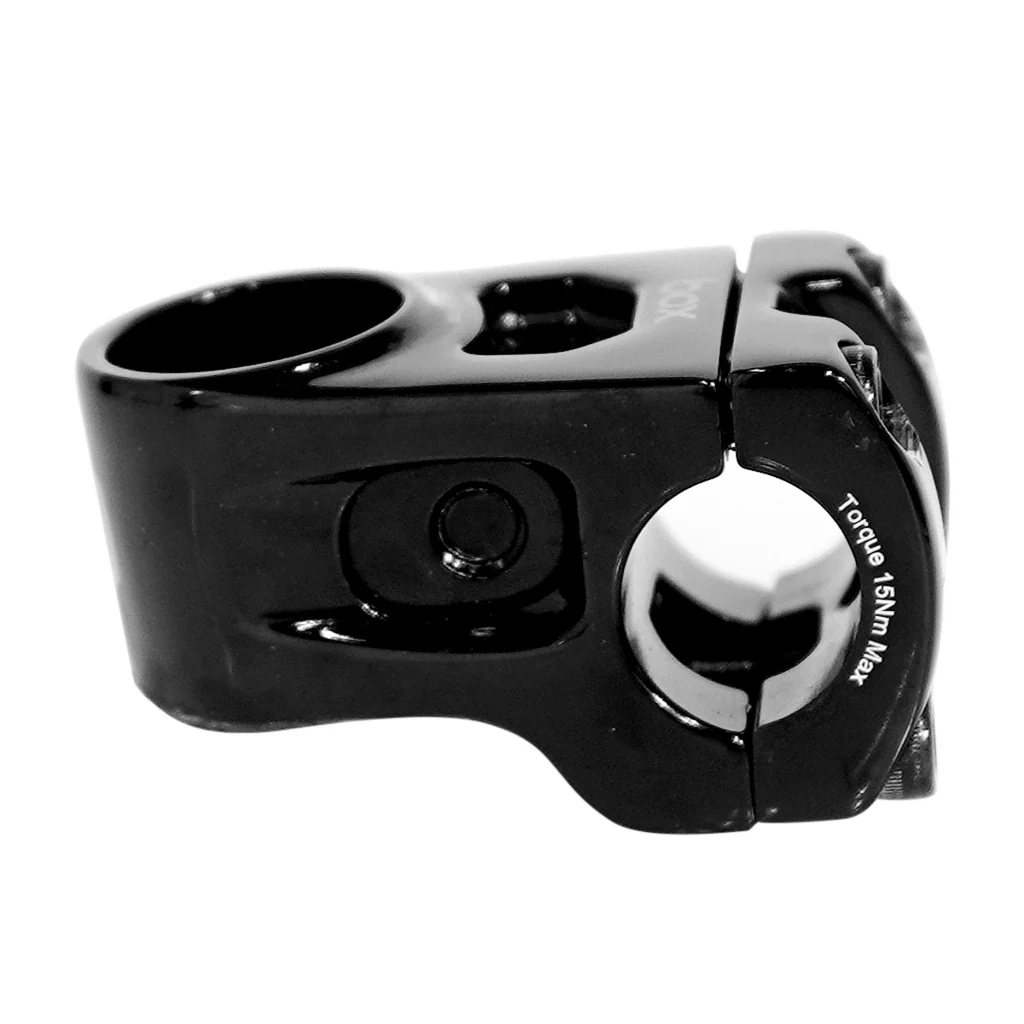

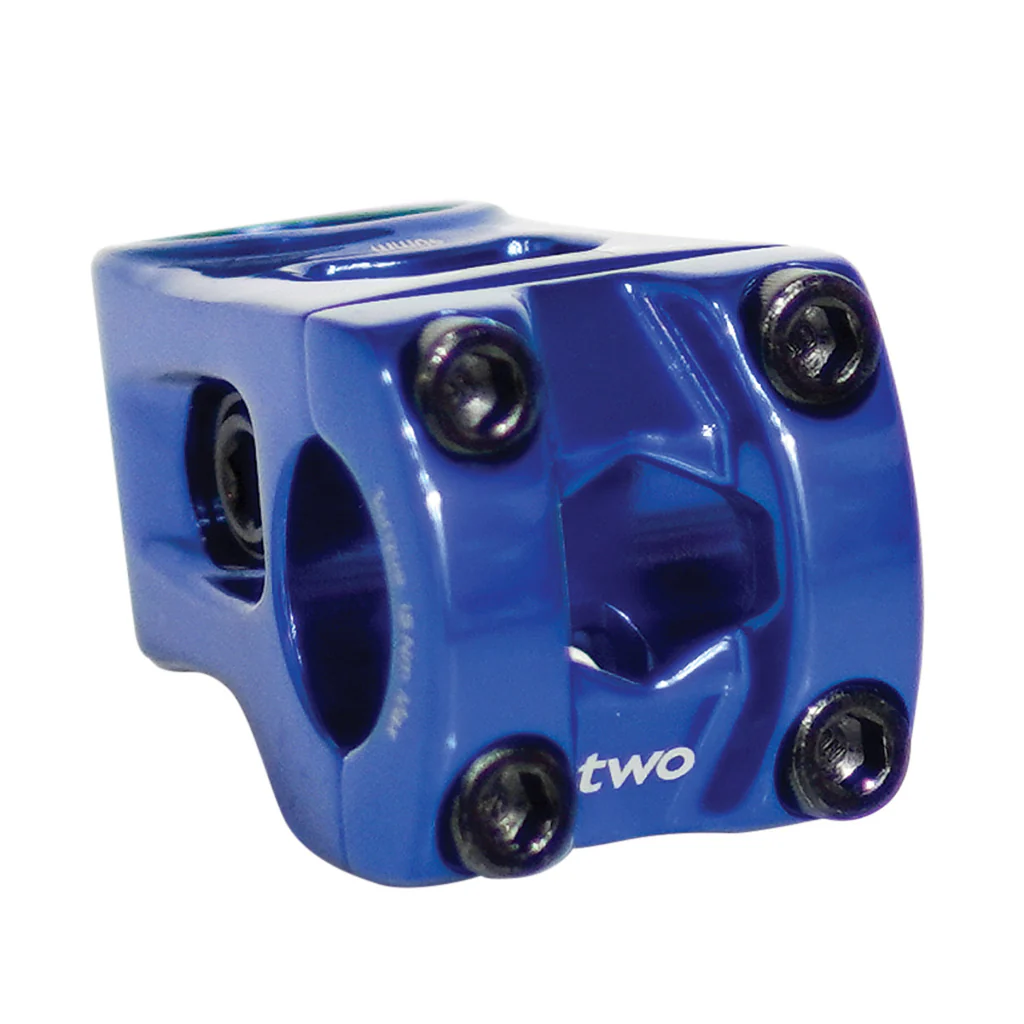

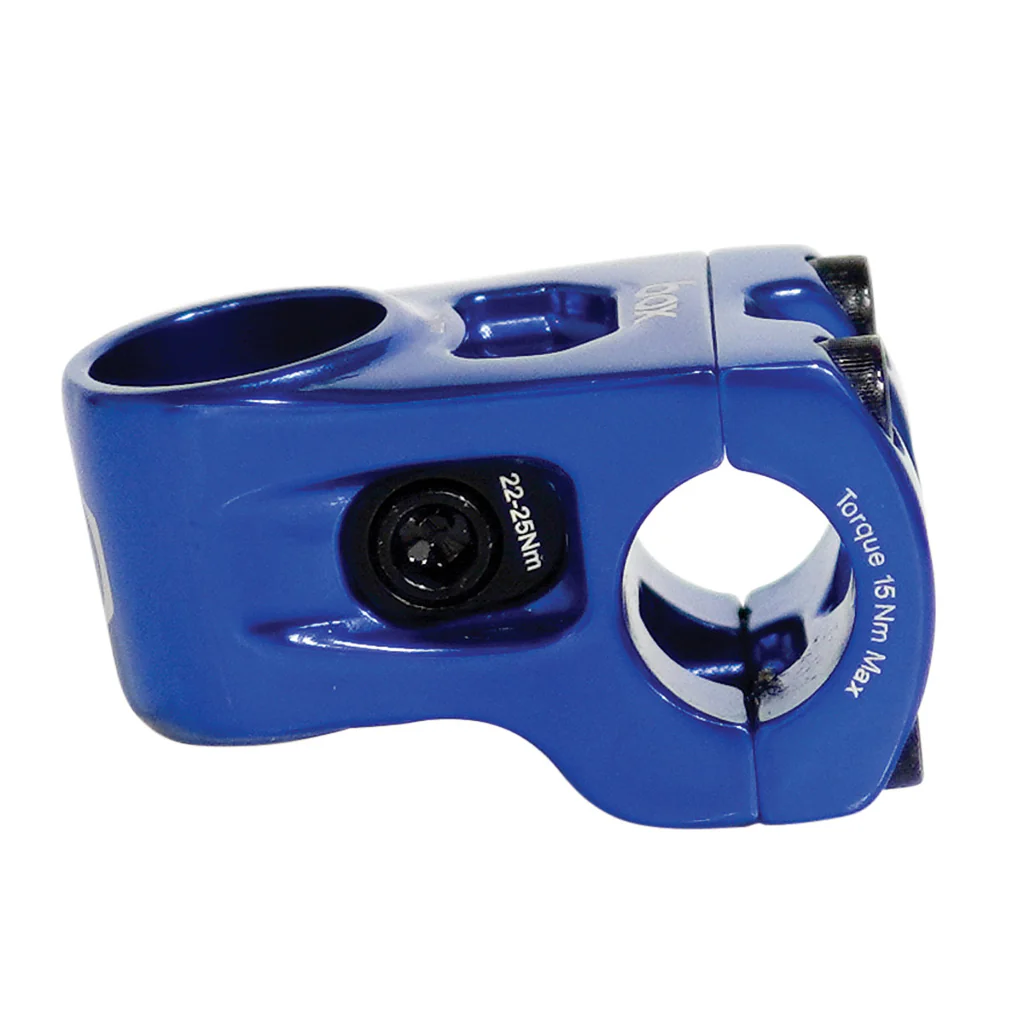

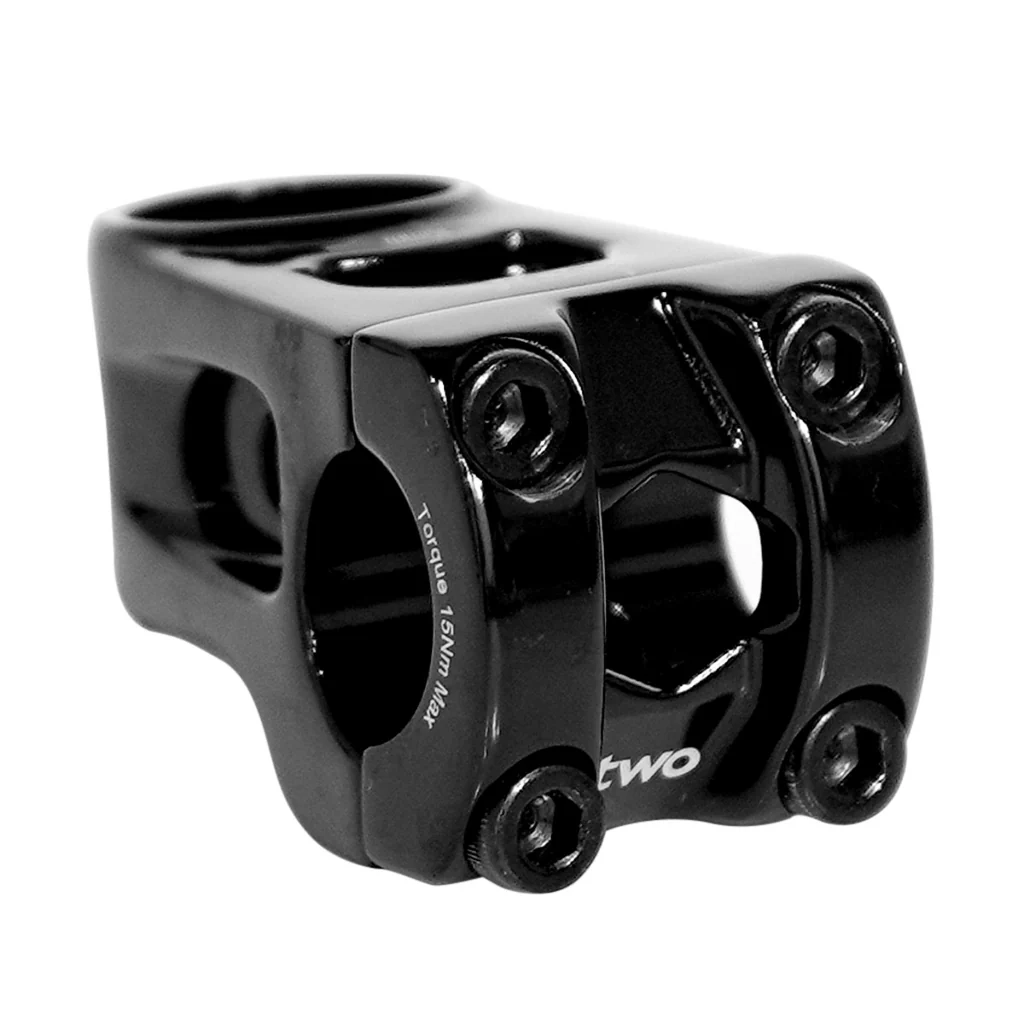

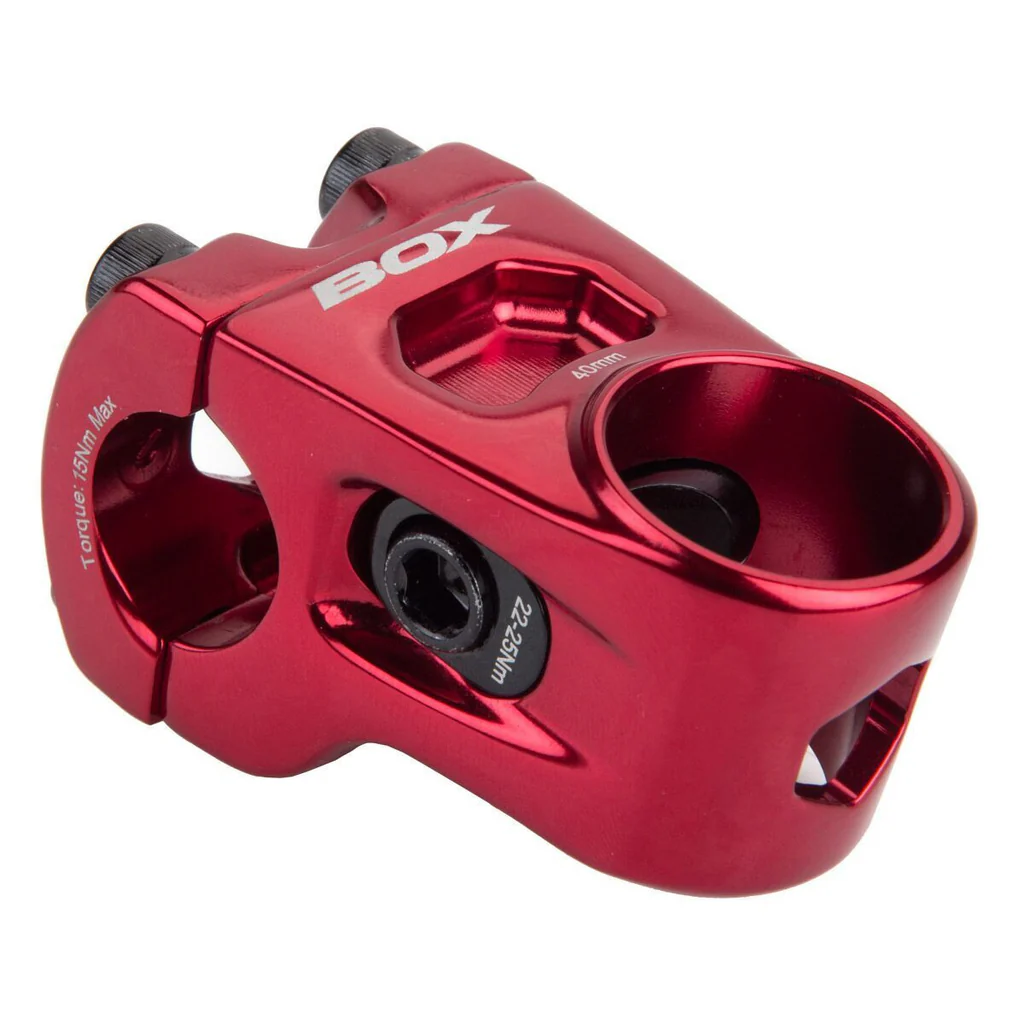

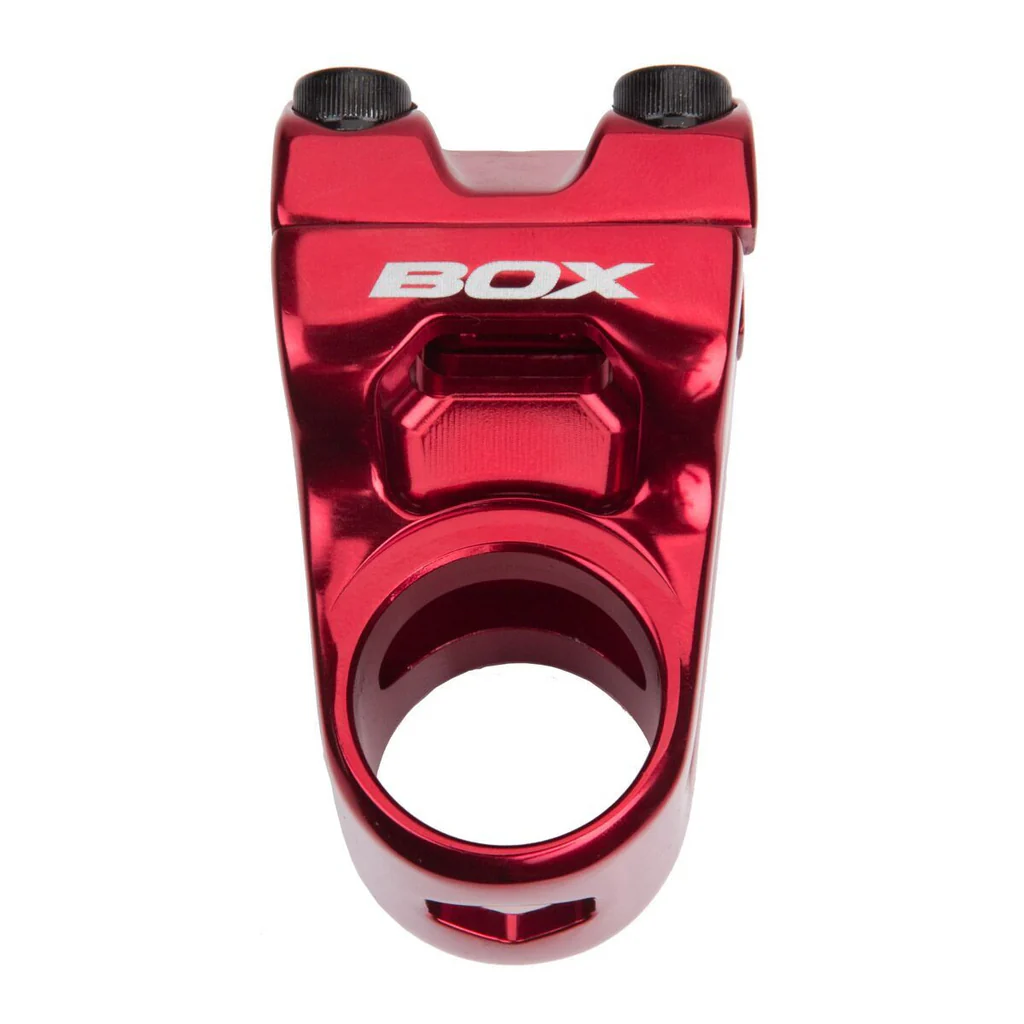

BOX TWO CENTER CLAMP 22.2MM STEM 1″

Rp1.249.000

“Not compatible with carbon fiber steerer tube forks” Box Two Center Clamp 1 Inch Stems are cold forged from the highest quality 6061-T6 aluminum. They also feature an open skeletal design and single mid-bolt wedge mounting system, making them among the lightest weight 22.2mm bar bore mini stems on the market. A 40-millimeter extension stem weighs just 132 grams grams/4.6 ounces. Box Two Center Clamp 1 Inch Stems have a single-bolt wedge clamp, meaning there are no rear-facing pinch bolts to injure the rider’s knees. They come with a 40- or 45-millimeter extension. Available in anodized red, blue, and black with laser-etched graphics and five hollow chromoly Allen bolts. Fits 22.2 Ø handlebars. To ensure proper clamping force, the stem must be mounted on a fork with at least 30mm of exposed steerer tube. Not compatible with carbon fiber steerer tube forks. Maximum recommended user weight is 99 pounds.

Material: 6061-T6 Aluminum
Process: Cold-Forged
Hardware: Chromoly Clamping Bolts
Finish: Anodized w/Laser-Etched Graphics
Size:
· Length: 40mm, 45mm
· Clamp Diameter: 22.2mm
· Stack Height: 32mm
· Rise: +/-5˚
· Steerer Tube: 1”
Weight:
· 40mm: 132 g / 4.6 oz
· 45mm: 145 g / 5.1 oz
