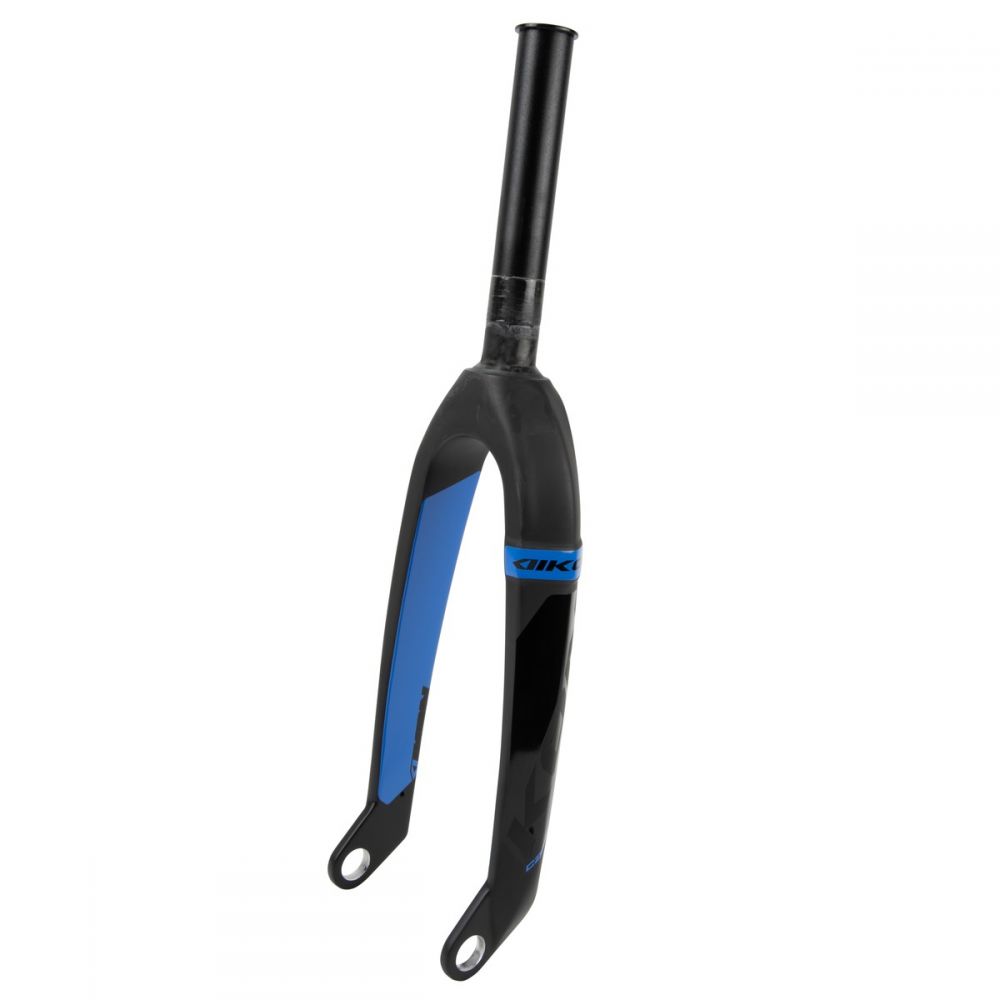

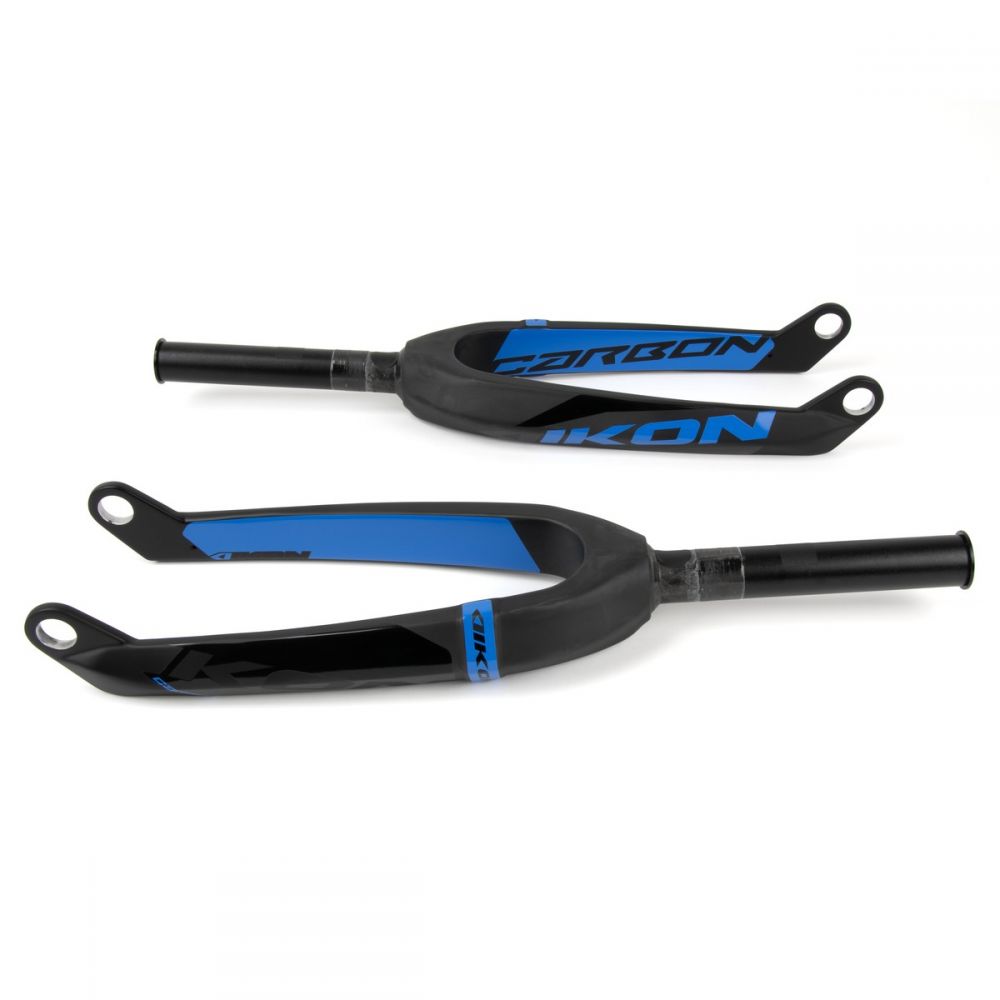

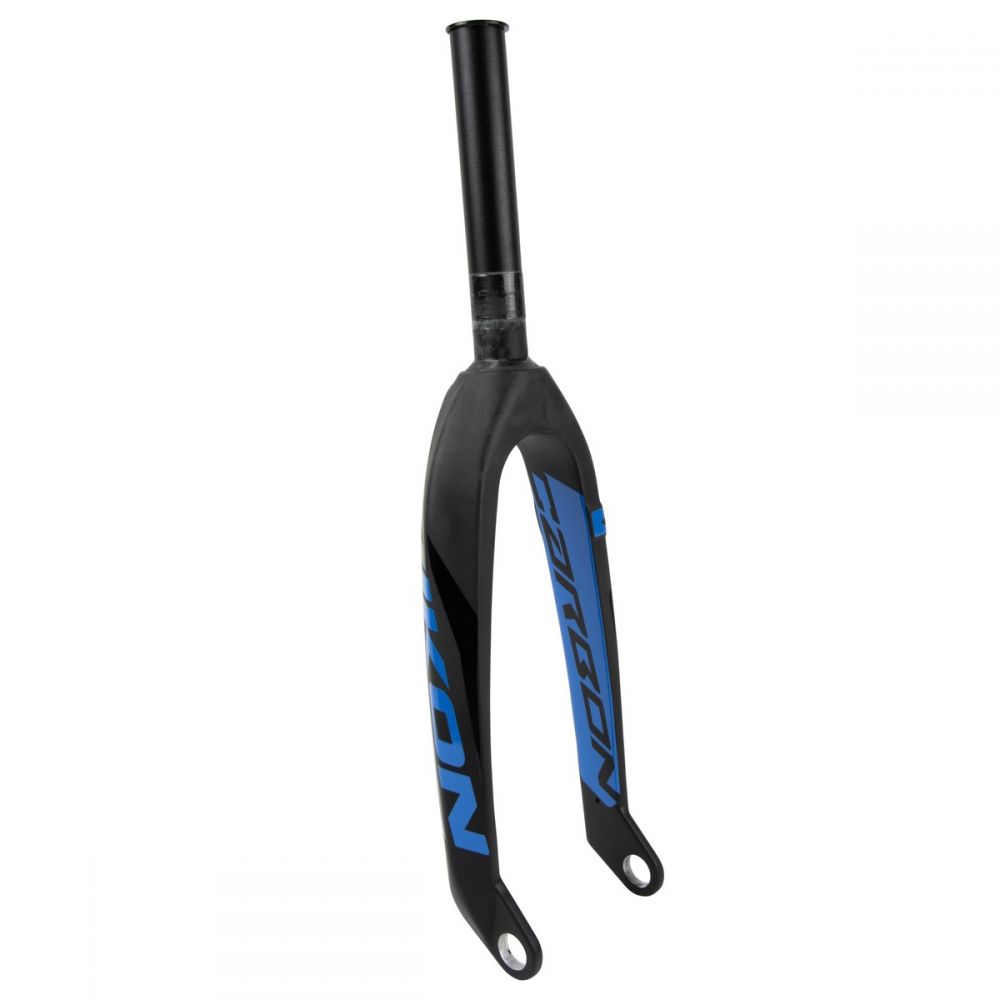

IKON EXPERT/PRO 20″ 20MM 1-1/8″ CARBON FORK

• SPECIFICATIONS :
  • Material: Toray UD Carbon fiber Matte Natural Hand Laid Carbon Finish
  • Steer Tube Material: 7075-T6 Aluminium – 7mm thickness
  • Threadless steer tube: 1-1/8
  • Integrated fork race built in for 45degree bottom bearing – No additional fork race needed
  • Steer tube length : 172mm
  • Dropouts: CNC Machined 6061-T6 Aluminium
  • Dropout Axle : 20mm Thru (112mm length suggested) – Optional 20mm to 10mm / 3/8 adapters available
  • Axle to crown: 305mm – 20″
  • Offset: 31mm
  • Weight: 20″ Fork 19.4 OZ / 1.2 LBS, or 533 Grams (without top cap)

  IKON forks are like no other Carbon fork offered today. Due to the hand laid natural Toray UD CARBON, the IKON fork has a unique look to it, unlike some types of traditional carbon fiber. The IKON Carbon is laid in a direction for optimal strength so there is non uniform carbon pattern and finish that will differ from fork to fork with its Matte finish.

  For use with a 20mm Axle – Suggested Lenght 114, not included
