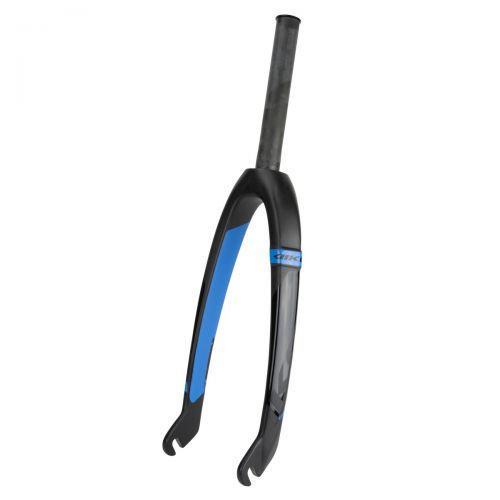

IKON MINI/JUNIOR 20″ 10MM CARBON FORK 1″

• IKON unique designed Tapered fork legs, with embossed features on the legs.
• 1” Full Toray UD Carbon Steer Tube  – 165mm in length
• 305mm axle-to-crown
• 28mm drop-out offset
• 10mm Carbon dropouts
• 304 Grams or 10.7 oz fork weight
• 0.3 oz or 8 Gram Anodized Black 7075T6 Alloy top-cap weight
• Rider Weight Limit : 99 lbs / 45 Kg
• Maximum axle tightening torque : 6 N.m

Fork works with 1” internal Diameter Headset. – Many Headsets in the 1” internal diameter bearing size are offered for both 1” or 1 1/8th head tubes. Check with your frame specs when ordering a headset. Lower Bearing Race is needed to be used with the 1” IKON fork.

IKON forks are like no other Carbon fork offered today. Due to the hand laid natural Toray UD CARBON, the IKON fork has a unique look to it, unlike some types of traditional carbon fiber. The IKON Carbon is laid in a direction for optimal strength so there is non uniform carbon pattern and finish that will differ from fork to fork with its Matte finish.

IKON Carbon Steer Tube Torque Spec Info:
We advise to use a torque wrench when installing the IKON fork and tighten to 5Nm. If the stem’s side bolts are over-tightened, you maybe able to /damage the carbon steerer tube.
