CHASE ELEMENT EXPERT
Rp29.750.000

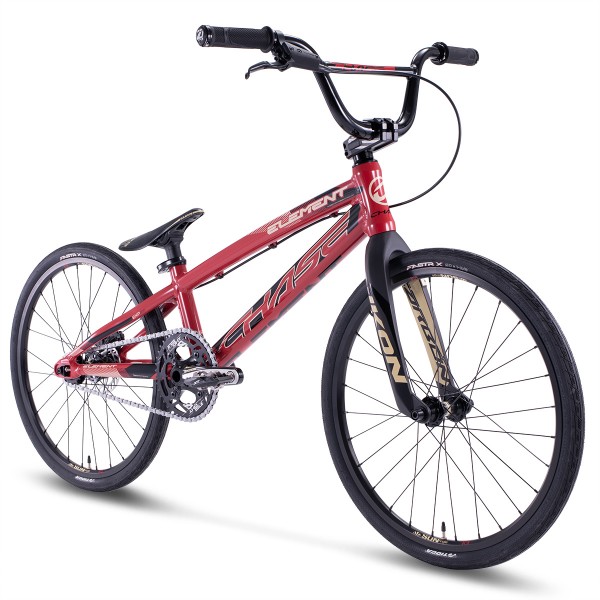

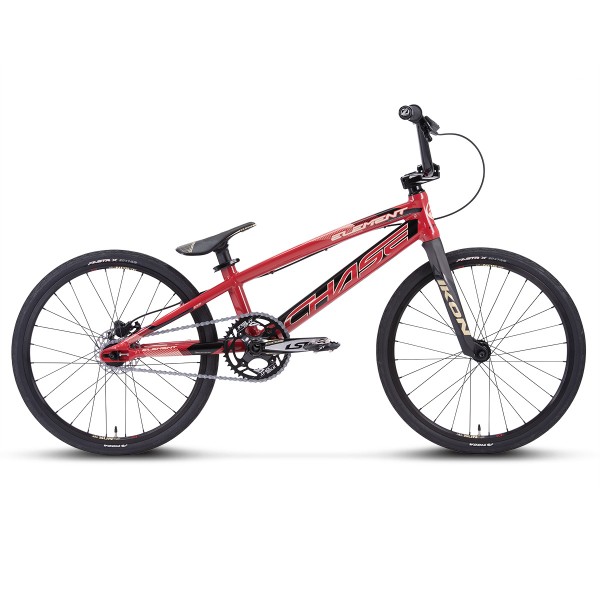

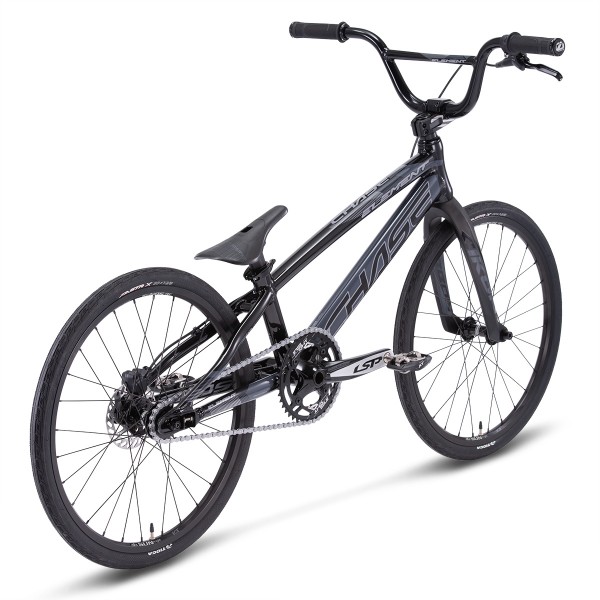

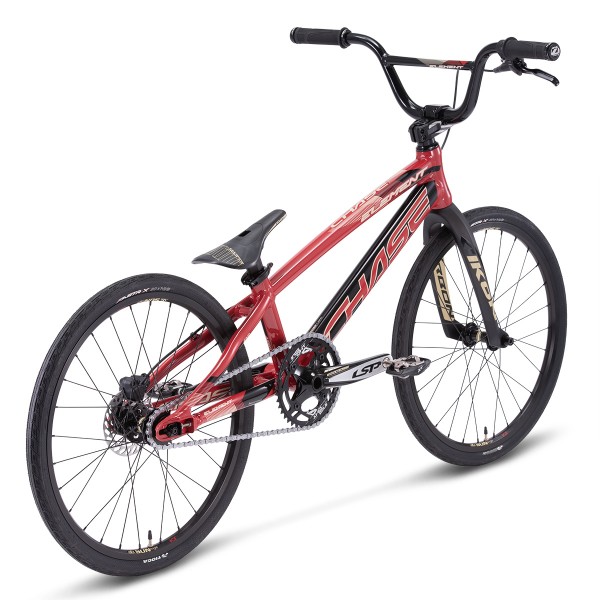

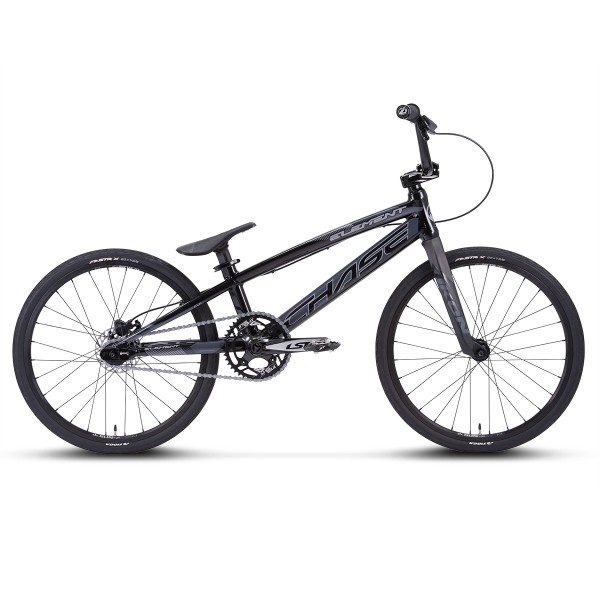

Chase has been pushing the envelope for the past 11 years with our complete bikes and the newest edition of the Element, Element 10 is the best we have ever offered. FRAME:Chase Element Expert 20″ Top tube, Hydroformed 7005-T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system FORK:Ikon Carbon Pro 1-1/8″, 20mm drop out, Alloy Steer Tube, Drop Out & Top Cap STEM:Chase Element 31.8mm 45mm HANDLEBAR:Chase Element 31.8mm 5.75″ CHAINRING: Insight 42T 4 Bolts BCD 104mm CRANKSET:Excess LSP 165mm, Press Fit BB86 HUBS :Chase Element M6 Bolts, 28H Front, Chase Element M6 Cassette ISO Hub 28H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog RIMS:Sun Ringlé ICI-1 Rims 20×1-3/8″, 28H, No Brake Surface TIRES:Tioga Fastr X 20×1-3/8″ Front & Rear BRAKES:Tektro Hydraulic lever and caliper (Resin pads), 120mm disc rotor SEAT:Chase Aero seat post & clamp / Elevn PC Pivotal seat PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only. RECOMMENDED SIZE: 4′ 7.5″ – 5′ 0.6″ / 1m41 – 1m54 WEIGHT: 18.4 LBS / 8.2 Kg with pedals
SPECIFICATIONS :

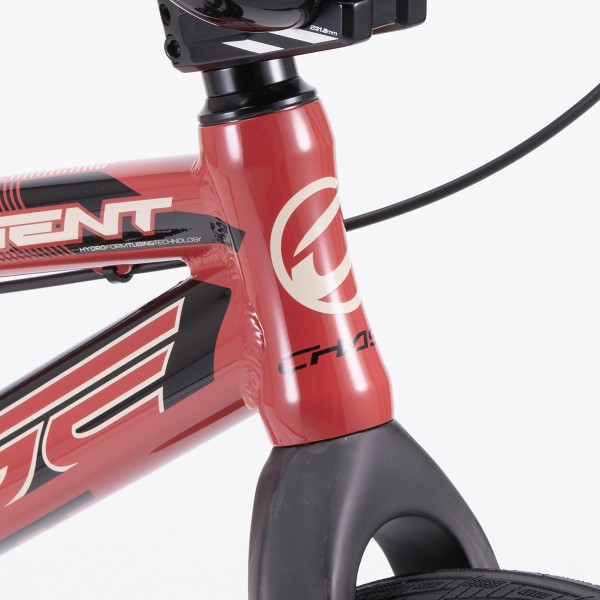

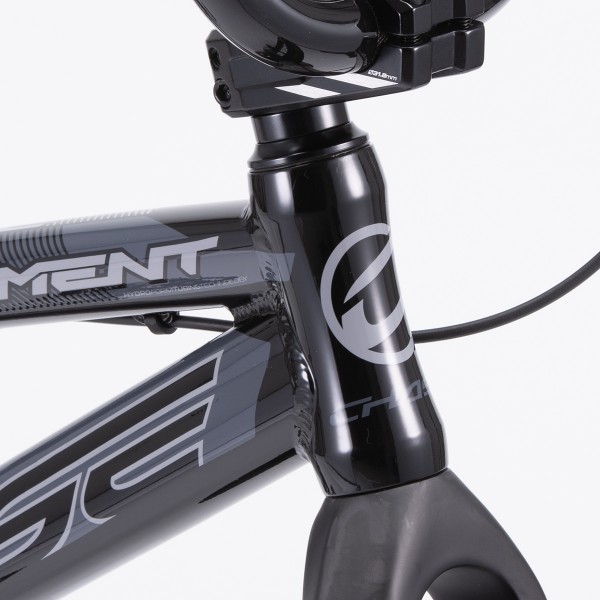

| FRAME | Chase Element Expert 20″ Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8″, Close Drop Out |

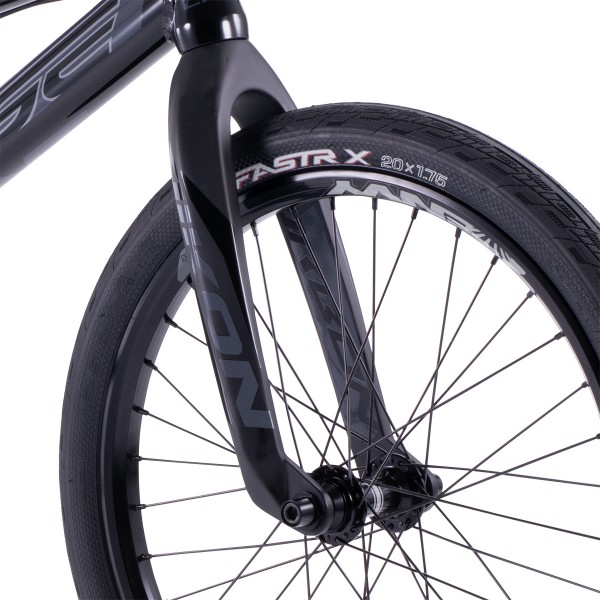

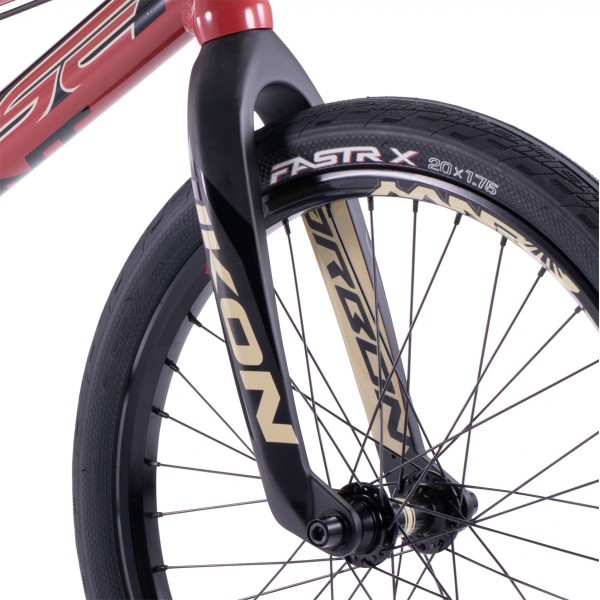

| FORK | Ikon Pro 20″ Carbon, Alloy 1-1/8″ Steer Tube, 20mm Drop Out with Adaptor 3/8″ Axle, Alloy Top Cap |
| HEADSET | Integrated IS 42/42 1-1/8″, Sealed Bearing |
| HANDLEBAR | Chase Element Alloy 5.75″, Diameter 31.8mm, Rise, 26.25″ Wide, 10° Back Sweep & 2° Up Sweep |

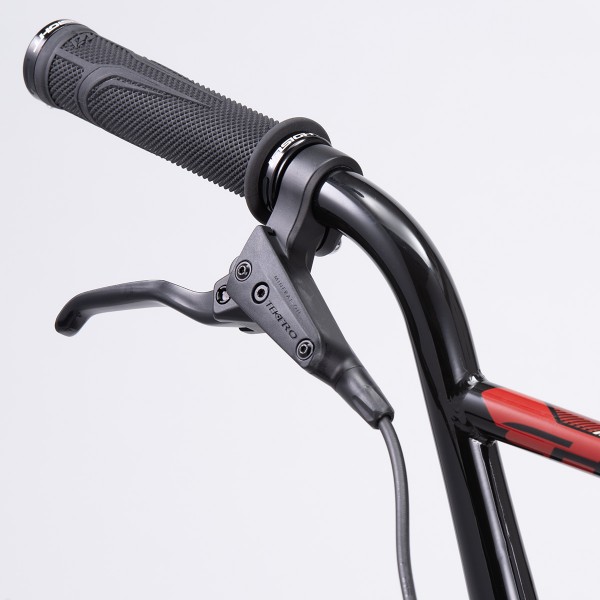

| GRIPS | Insight C.O.G.S 130mm, Alloy Clamps Laser Etched Logo, PVC End Plug |
| STEM | Chase Element 1-1/8″ Steer Tube, Diameter 31.8mmmm, Length 45mm 6061 T6 Alloy CNC Laser Etched Logo |
| BB | Press Fit 68/73mm Cartridge Bearings |

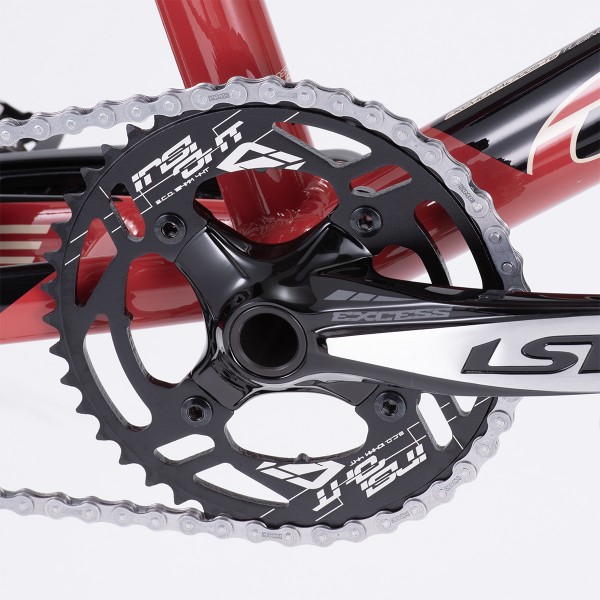

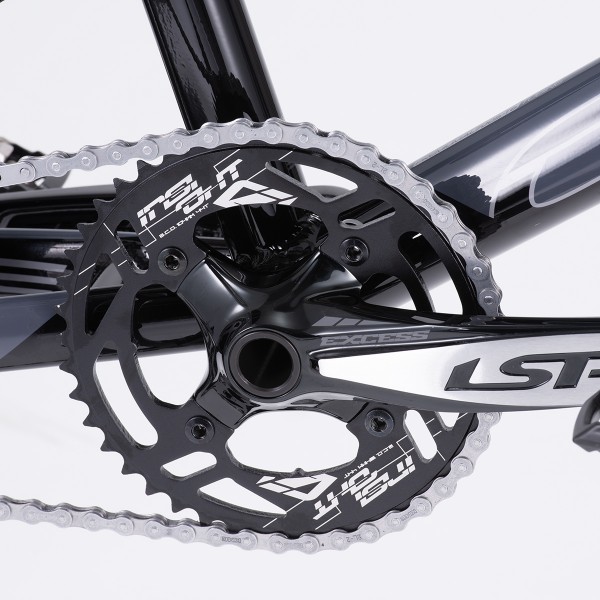

| CHAINRING | Insight 42 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring |
| CRANK | Excess LSP 2 Piece Crank 165mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts |
| PEDAL | Nylon Platform Pedal 9/16″ |
| CHAIN | KMC Z1 narrow 1/2″x3/32″ |
| COG | 16 Tooth |
| FRONT HUB | Chase Element M6 Bolts ,28H, Sealed Bearing |
| REAR HUB | Chase Element Mini ISO, 28H, Sealed Bearing, M6 Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
| SPOKES | Front 215mm, Rear 213mm, 14 Gauge, Steel |
| NIPPLES | Brass 14Gx5/8″ |
| RIMS | Sun Rims Alloy ICI-1 28H 20″x1-3/8″ No Brake Surface Presta Valve |
| FRONT TIRE | Tioga Fastr X 20″x1-3/8″ 60 TPI Wire Bead |
| REAR TIRE | Tioga Fastr X 20″x1-3/8″ 60 TPI Wire Bead |
| TUBES | 20×1-3/8″ Presta valve |

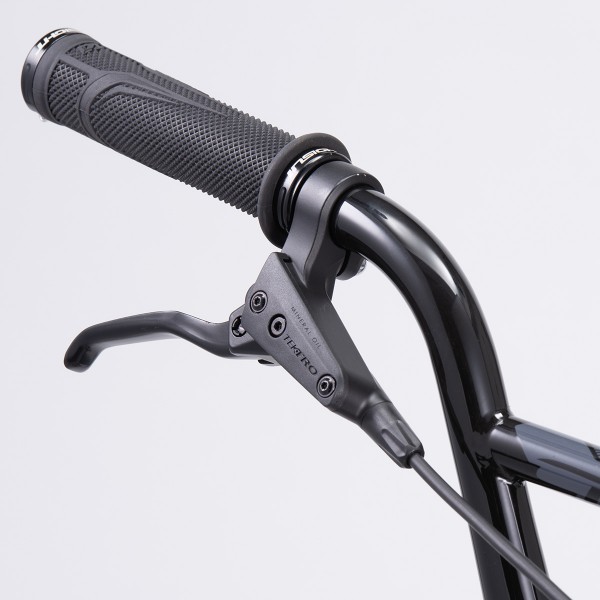

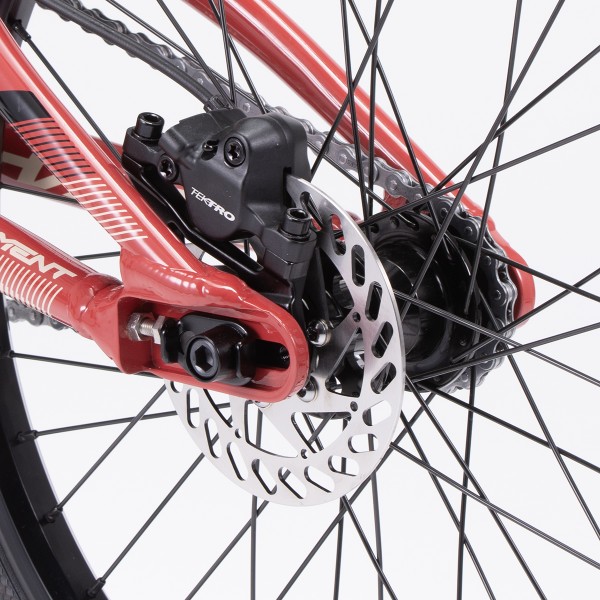

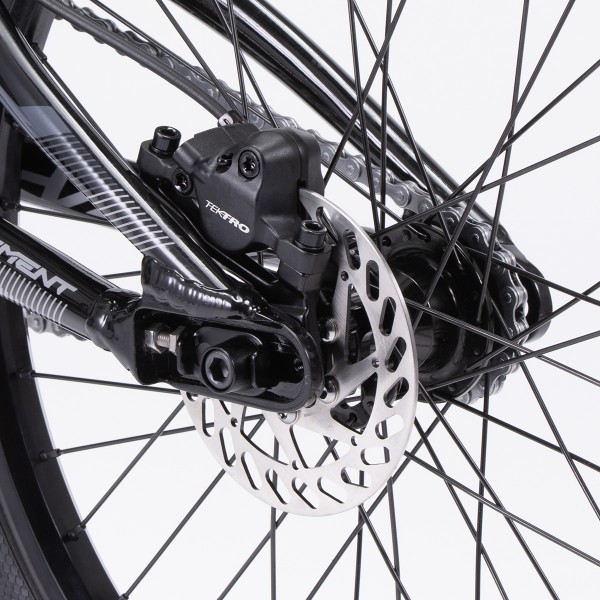

| BRAKES | Tektro HD-M281 Hydraulic, Resin Pads, 120mm Rotor, Lock Disc Adaptor |

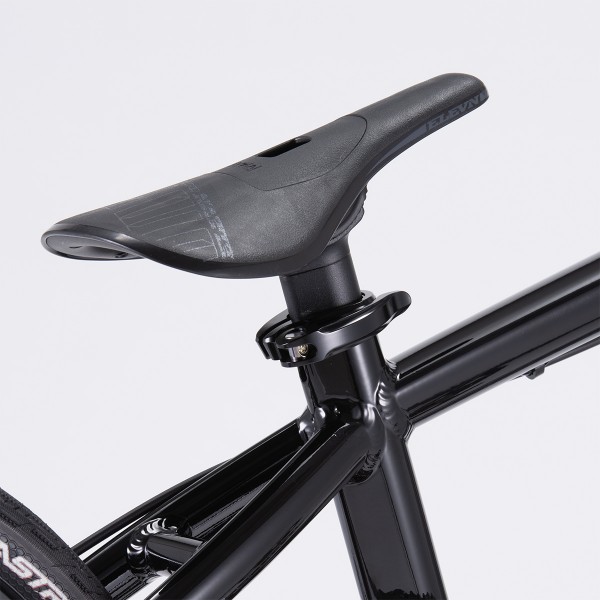

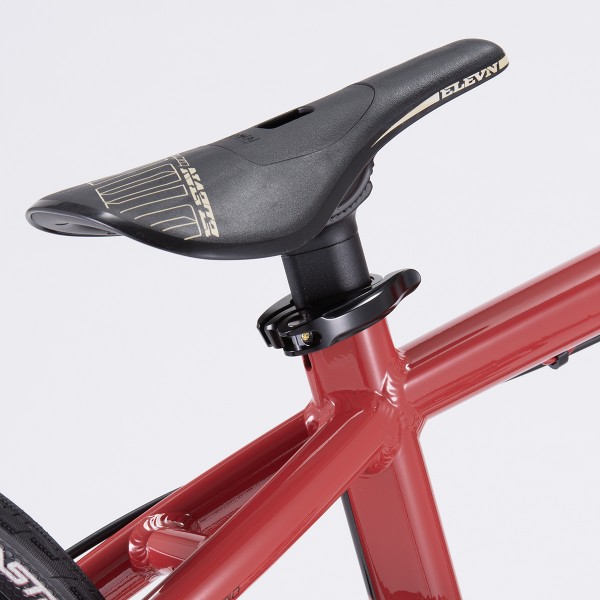

| SADDLE | Elevn PC Pivotal |
| SEAT POST | Chase Aero Pivotal 27.2x260mm Alloy |
| SEAT CLAMP | Chase Aero 27.2mm QR Alloy |
| CHAIN TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
GEOMETRIES :
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
0 of 0 reviews
Sorry, no reviews match your current selections
