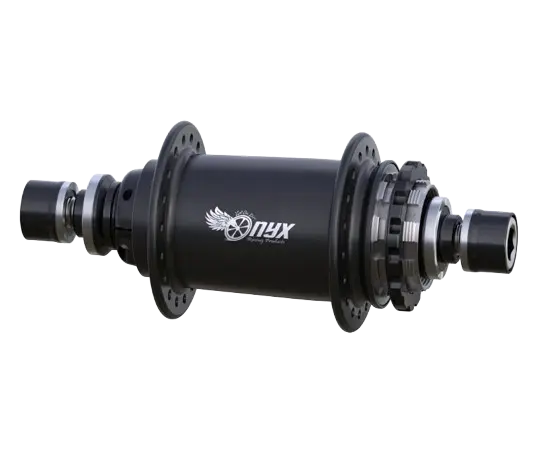

ONYX PRO 15MM HG – 110mm/10mm Bolt-on Rear Hub
Rp7.750.000
This hub assembly is a Bolt-on adaptation for open dropout Thru-axle frames. For use in conjunction with a 10mm chain tensioner.
SKU: 090633
Description and Drawings
| A – Hub Center To Flange Center, Non-Drive Side (mm) | 27.85 |
|---|---|
| B – Hub Center To Flange Center, Drive Side (mm) | 27.85 |
| C – Axle Width (mm) | 110 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 50 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 50 |
| Spoke Hole Counts Available | 24/28/36 |
Specs
| Weight | 14.8 oz / 420 g |
|---|---|
| Dimensions – Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | Rear |
| Axle Width – mm | 110 |
| Axle Diameter – mm | 10 |
| Spoke Count | 24, 28, 36 |
| Attach Style | Bolt-on |
| Hub Shell Style | Solid |
| Hub Shell Flange Type | J-Bend |
| Bolts | Titanium |
| Driver Style | Shimano Hyperglide® |
| Spoke Tension – Max kgf | 120 |
| Product Line | Classic |
