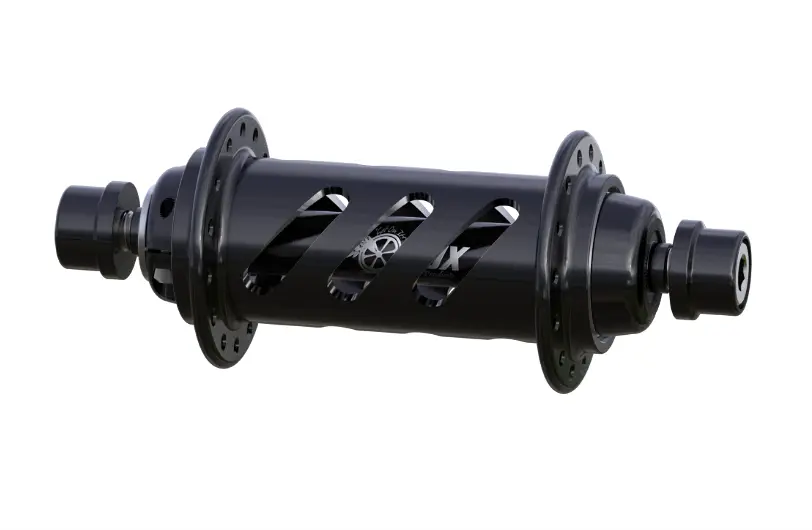

ONYX Front Helix 100/8mm bolt
Rp3.400.000
Description and Drawings
| A – Hub Center To Flange Center, Non-Drive Side (mm) | 33.8 |
|---|---|
| B – Hub Center To Flange Center, Drive Side (mm) | 33.8 |
| C – Axle Width (mm) | 100 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 42 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 42 |
| Spoke Hole Counts Available | 28/36 |
Specs
| Weight | 6.0 oz / 170 g |
|---|---|
| Dimensions – Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | Front |
| Axle Width – mm | 100 |
| Axle Diameter – mm | 8 |
| Spoke Count | 28, 36 |
| Attach Style | Bolt-on |
| Hub Shell Style | Helix Cut-out |
| Hub Shell Flange Type | J-Bend |
| Bolts | Titanium |
| Spoke Tension – Max kgf | 120 |
| Product Line | Classic |
